Pediatric Scales

Capacity: 130 lb x 1 oz
Overall Dimensions: 22 in W x 21 in D x 27 in H
Tray Dimensions: 22 in W x 14.75 in D x 4.5 in H
Measuring Tape: 0 - 21 in
Construction (Base and Column): White baked-on, powder-painted steel
Construction (Weighing Tray): White polystyrene

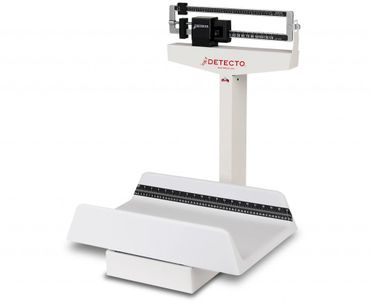

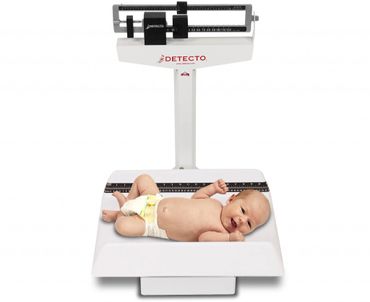

 DETECTO’s mechanical baby scales provide the ultimate in safety for pediatric patients while also utilizing the time-tested, reliable DETECTO weigh beam for highly-accurate measurement. They are available in capacities up to 130 pounds and 65 kilograms with your choice of pounds or kilograms readings. There is no electricity required, making them ideal for remote clinics and pediatrician offices.

The easy-to-clean polystyrene tray cradles babies securely on these dependable pediatric scales. The heavy-duty steel base provides patient assurance while weighing. A built-in measuring tape allows the healthcare professional to measure both weight and height simultaneously.

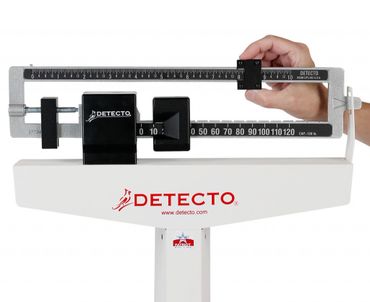

The die-cast weigh beam is positioned high above the scale base to provide for unobstructed viewing of the baby’s weight measurement at an easy-to-read height. The baked-on, white powder paint offers a long-lasting dependable finish. For fast mechanical measurement, DETECTO is the most trusted name brand in clinical weighing.

Capacity: 30 lb x 0.1 oz

Overall Dimensions:  26 in W x 14.256 in D x 7.473 in H

Tray Dimensions:  26 in W x 12.2 in D

Display:  1 in / 25 mm, 6 digit 7 segment LCD

Power:  6 C batteries (not included) or AC power adapter (included)

Weight Units:  Pounds and ounces

Integrated Ruler:  Measures up to 22 in / 56 cm

Output:  RS232 serial

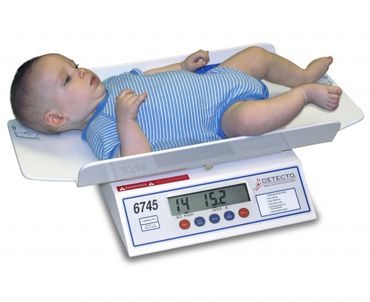

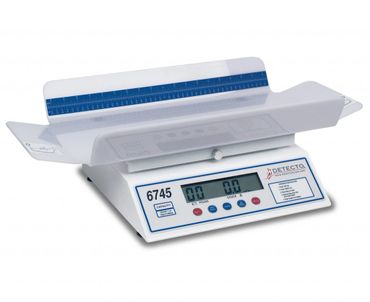

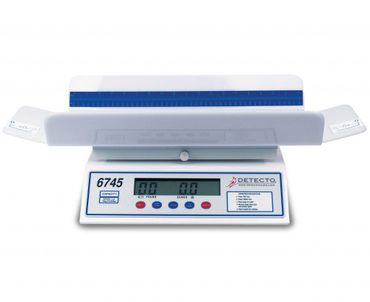

 DETECTO’s 6745 baby scale was designed for use in the NICU, nursery, delivery room and pediatric practices where high accuracy and dependability is paramount for weighing the smallest of patients. Step-by-step instructions are displayed right on the keypad for ease of use. The 6745 baby scale features metric lockout, integral measuring tape (up to 22 inch/56 cm), 30 lb x 0.1 oz / 15 kg x 0.005 kg capacity, locking pin for easily removing the tray for cleaning, 1 inch (25 mm) high LCD, and RS232 serial output for connectivity with a printer or PC. The spacious weighing tray measures 26 in W x 12 in D / 66 cm W x 31 cm D. The scale’s ZERO button removes blanket tare weights. Your choice of rechargeable NiCad batteries (not included), standard Alkaline batteries (not included), or UL-listed AC adapter (included). The 6745 pairs perfectly with the Detecto stainless steel baby scale cart.

Features

• 1 in/25 mm high LCD
• 30 lb/15 kg Capacity
• AC Power Cord Included
• Adjustable Lock Thershold
• Bulit-in Battery Charger
• Color-Coded Easy-to-Use Keypad
• From Neonatal to Pediatrics Use
• Integral Measuring Tape
• Metric Lockout Available
• Roomy Weighing Tray
• Serial Output for Printers
• Sleep Mode and Auto Shut-off
• ZERO Button to Remove

Capacity:  44 lb x 0.05 lb

Power:  6 AA batteries (not included) optional AC adapter available

Display:  0.7 (19 mm) high LCD, 6 digit, 7 segment

Keyboard:  Membrane type with 5 keys and 4 dir. arrows

Connectivity:  RS232 serial port

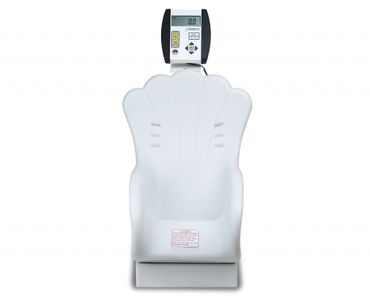

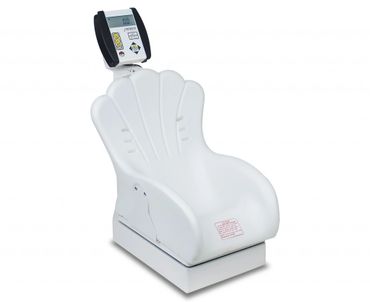

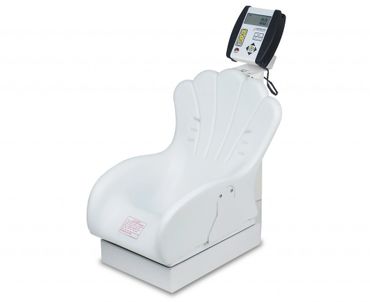

 Infants readily accept the inclined seating of DETECTO’s 8432-CH series digital pediatric scales. The built-in, shell-shaped seat is made of plastic material and fun for children to sit in while weighing. With pound and kilogram readings and heavy-duty steel base and understructure for support and stability, these pediatric scales have a lot to offer. The 8432-CH has a lock-in weight feature which compensates for typical baby movement. The crisp LCD features 0.75 inch high digits for easy readouts. The weight indicator is conveniently situated over the top of the shell seat, so it’s easy to read the weight while the baby is seated.

Features

• Digital Speed and Accuracy
• 44 lb / 20 kg Capacity
• Clinical Accuracy to .05 lb/ .02 kg
• Simple-to-Use Weight Indicator
• Battery or AC Power
• Solid Steel Base for Steady Assurance While Weighing
• Pushbutton Tare to Remove Blanket Weights
• Fun Shell-Shaped Plastic Seat
• EMR/EHR Serial Connectivity
• Units Locking into Pounds or Kilograms for Safe Dosages

Capacity:130 lb x 0.1 lb

Tray Dimensions:  22 W x 14.7 D x 4.5 H in

Overall Dimensions: 22 W x 21 D x 37.5 H in

Construction:  Baked-on, powder-painted steel

Display:  0.7 / 19 mm high LCD, 6 digit, 7 segment

Power:  6 AA batteries (not included) or optional AC adapter

Keyboard:  Membrane type with 5 keys and 4 dir. arrows

Connectivity:  RS232 serial port

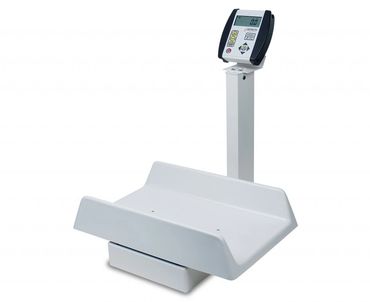

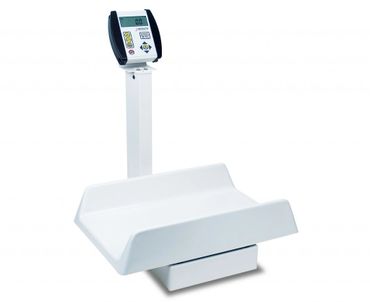

 The Detecto brand name, known around the world, assures you of a reliable, accurate scale for pediatric weighing. The Detecto model 8435 offers you a choice of pounds or kilograms. Lightweight and attractive, this baby scale features a heavy-duty, rust-resistant understructure and digital speed and accuracy. The polystyrene trays are a snap to clean and the scales feature compact footprints. The heavy-duty steel base provides patient assurance while weighing. A built-in measuring tape allows the healthcare professional to measure both weight and height simultaneously.

Detecto’s model 8435 features an easy-to-use keypad and extra-large display that is perfect for patient weighing and viewing by the attending nurse, physician, or home healthcare professional. The filtering feature compensates for typical baby movement and the Lock key holds weight, so the nurse can attend to the baby first and then record the weight. The 8435 is powered by 6 AA batteries (not included) or optional AC adapter and it is EMR/EHR ready via its RS232 serial port. The 8435’s capacity is 130 lb x 0.1 lb / 59 kg x 0.05 kg with OneWeigh units locking, so you can select lb or kg upon initialization and lock in the units to your preference and prevent dosing errors.

Features

• Digital Speed and Accuracy
• 130 lb x 0.1 lb / 59 kg x 0.05 kg Capacity
• OneWeigh Units Locking Locks Scale into LB or KG Upon Initialization to Prevent Dosing Errors
• Pushbutton Tare to Remove Blanket Weights
• Built-in Measuring Tape: 0 to 21 in x 0.25 in / 0 to 53 cm x 0.1 cm
• Easy-to-Clean Plastic Trays for Baby Comfort
• EMR/EHR Ready Via RS232 Serial Communications
• Easy-to-Read High-Contrast LCD
• Heavy Steel Base for Patient Stability
• Durable, Long-Lasting Steel Construction
• AC or Battery Power
• Convenient Display Positioning Over the Top of the Child
• Built-in Measuring Tape
• Automatic Weight Hold Feature for Active Babies, Locks in Weight

Capacity:  44 lb x 0.5 oz

Scale Dimensions:  9.75 W x 11.3 D x 7.5 H inches

Tray Dimensions:  20.6 W x 10.5 D x 4 H inches

Power:  1 9V battery (not included) and 1 3V lithium back-up battery for memory (included)

Clock Function:  Time/Date

Memory Function:  Memory for comparison of current and stored weight

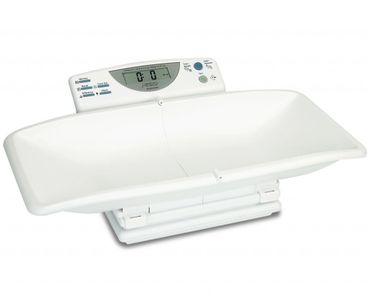

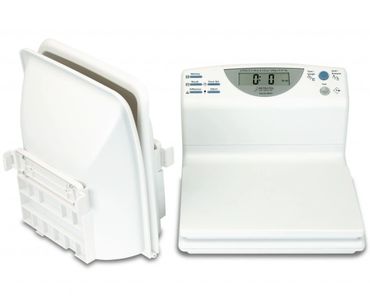

 DETECTO’s 8440 baby scale is perfect for home healthcare, pediatrics, or wherever space is limited and performance is paramount. Power requirements are one 9V alkaline battery (not included) and one 3V CR2032 lithium backup battery (included) for memory. The AC adapter is included. Tray dimensions are 20.6 W x 10.5 D x 4 H inch (524 W x 267 D x 102 H mm). Display options include date and time as well as storage of previous weight on a large 1 inch (25 mm) high LCD screen. 44 lb x 0.5 oz / 20 kg x 10 g capacity.

Features

• 1-in-high LCD
• 44 lb/20 kg Capacity
• Collapsible Tray for Storage/Transport
• Date and Time Display
• Standing Toddler or Baby Weighing
• Storage or Previous Weight
• 1 9V battery (not included) and 1 3V lithium back-up battery for memory (included)
• AC adapter is included
